..:Clarion . . System:..

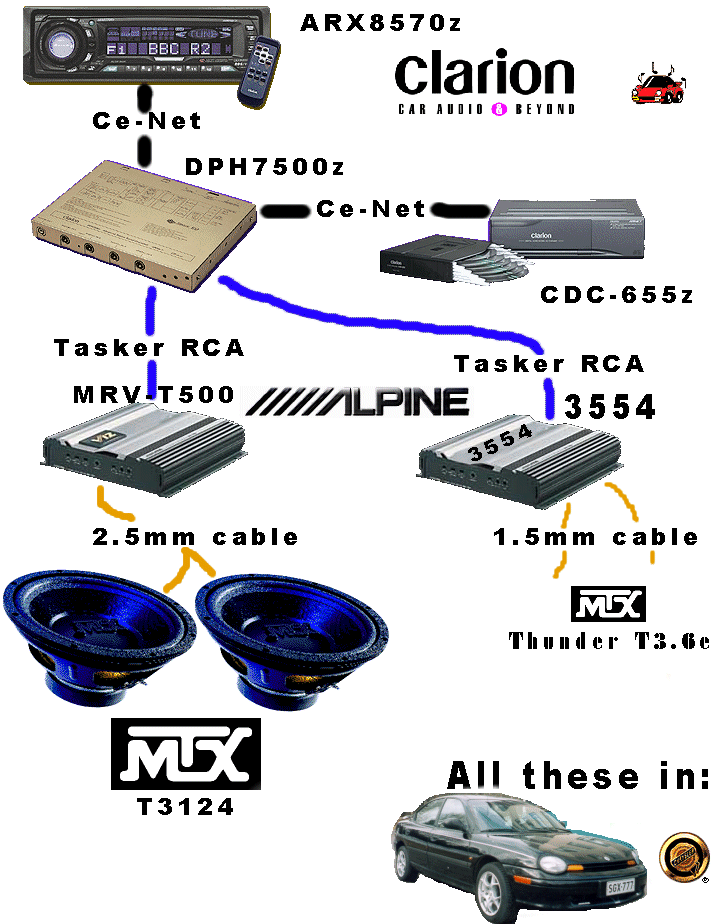

System chart:
(click images to get picture of the installed devices)


Larger image here

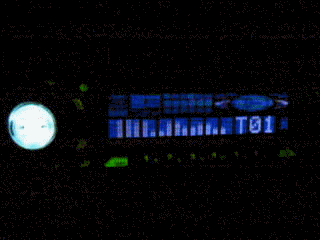

Div-x video from the car:
Download video (1.3Mb, 5 min)
Div-x codec




Clarion ARX8570z Cassette player / RDS Pro tuner / DSP / CD changer control unit

  • Ce-Net
  • Quick RDS Tuner
  • Full Logic Cassette Player (who needs this?)
  • 3*RCA 4V line level output
  • Cool detachable front panel



Clarion DPH7500z Digital Signal Prosessor

  • Ce-Net
  • Digital graphic & Parametric EQ
  • Space EQ
  • Easy and pro mode
  • DSP
  • Crossover system
  • S/N Ratio 107db
  • A/D converter: 20bit 64 times oversampling
  • D/A converter: 20bit 8 times oversampling
  • 4 optical fiber inputs
  • 3 RCA outputs



Clarion CDC-655z CD Changer

  • Ce-Net
  • Digital optical fibre output
  • Freq. response 5Hz-20kHz
  • S/N:105db
  • wow and flutter below measurement limits
